Foresight™ VGA & USB with Stereo Audio, RS232, IR CAT5 Extender

The VKM03 VGA, USB with Stereo Audio, RS232,IR CAT5 extender design for extends all signal over one CAT5 up to 150 meters, with local VGA monitor output. It provides superior video quality up to 1920 x 1080 resolution, and using cost effective Cat5e cable, instead of VGA, audio, RS232 cables, for a easy, neater and reliable installation. It is optimized for applications at digital signage, home network integration, industrial control, security, and KVM extension.

VKM03 VGA & USB with Stereo Audio, RS232, IR CAT5 Extender

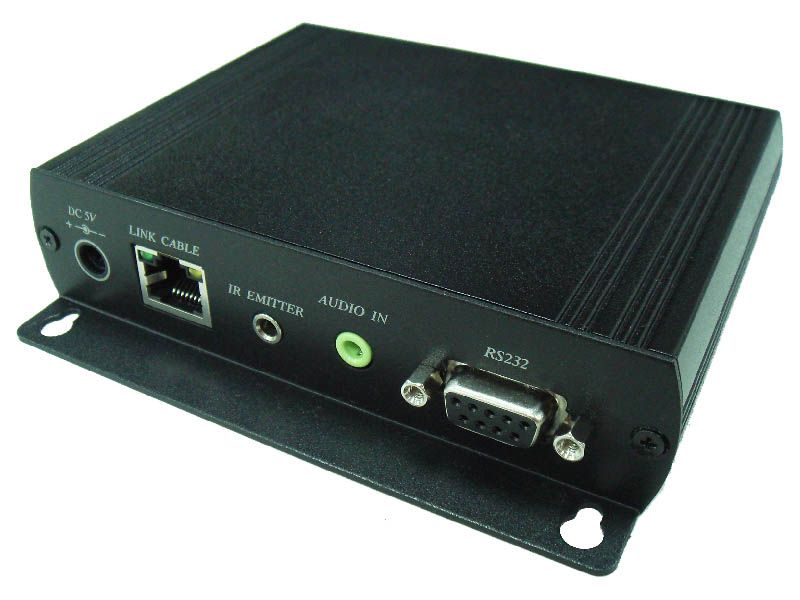

VKM03T Rear View

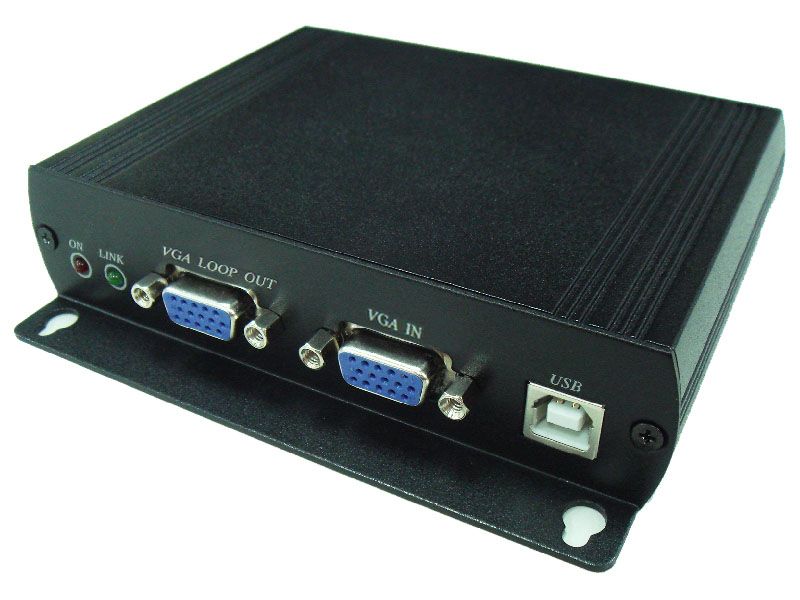

VKM03T Front View

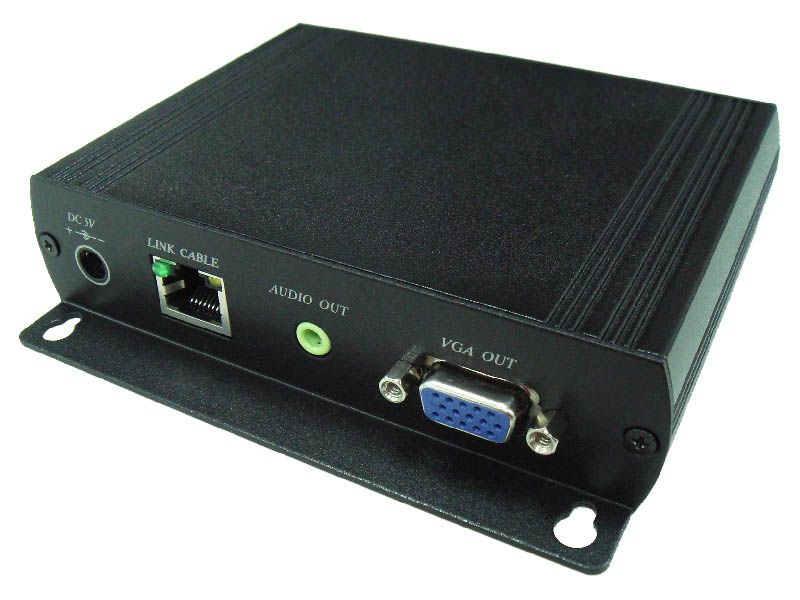

VKM03R Rear View

VKM03T Front View

Features:

Extend VGA, stereo audio, RS232, IR and USB signals over one CAT5E/CAT6 cable.
USB 2.0 for 4 ports USB devices, to extend USB 2.0 peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
Transmitter unit built in VGA loop output.
Receiver unit with 4 ports USB devices, to extend USB 2.0 peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
Supports up to 1920 x 1080.
Transmission range up to 150 meters.
Plug and play for easy operation.
Perfect for control remote machines and security monitoring systems, digital signage application.
Optional model: SR01 signal repeater for longer distance application.

Installation View:

VGA & USB with Stereo Audio, RS232, IR CAT5 Extender
