Multimedia AV CAT5 Extender: Wall Plate

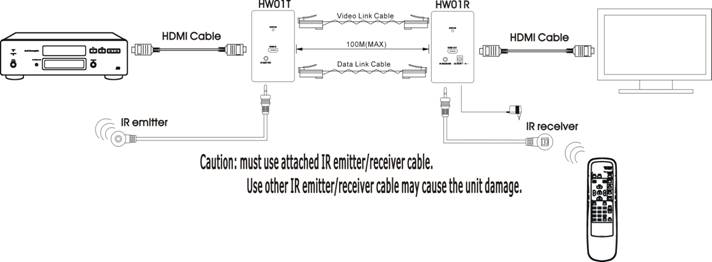

HW01 Wall Plate HDMI & IR Repeater CAT5 Extender

• Extends HDMI and IR signal over two CAT5/5e/6 cables.
• Transmission range up to 100 meters.
• Support high resolution up to 1080p.
• Built in auto EQ function, no need to do any adjustment for different range.
• Fully HDCP compliant.
• HDMI 1.3a compatible, HDCP 1.1, support DDC, EDID, CEC, Hot Plug Detect
• Built in IR repeater function, could be control the source devices from remote side.
• Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack.
• Package includes: transmitter and receiver unit, one external power adapter, IR emitter cable  and IR receiver cable. ( 1.8 meters（6 ft）)

CW01A Wall Plate Video & Stereo Audio CAT5 Extender

• Send video and stereo audio over one CAT5 UTP cable.
• Wall mountable type for a neat and cleaner installation.
• 3 x RCA female for video and stereo audio.
• Passive, no power required.
• Transmission range up to 300 meters.
• Perfect for integrated home entertainment application.

CW01AP Wall Plate Video, Audio, Power CAT5 Extender

• Send video, audio and power over one CAT5 UTP cable.
• Wall mountable type for a neat and cleaner installation.
• 2 x RCA female for video and audio, 1 x DC jack for power.
• Passive, no power required.
• Transmission range up to 300 meters.
• Perfect for integrated home security and entertainment application.

YW01   Wall Plate Component Video CAT5 Extender

• Send component video signals over one CAT5 UTP cable.
• 3 x RCA female to RJ45 female, green color for Y, blue color for Pb , red color for Pr.
• Wall mountable type for a neat and cleaner installation.
• Passive, no power required.
• Support up to HDTV. ( 480i /480p/720p/1080i)
• Transmission range up to 300 meters.
• Perfect for integrated home entertainment application.

YW01D Wall Plate Component Video & Digital Audio CAT5 Extender

• Identical to YW01A, but with digital audio.
• Digital Audio signal up to 180meters.

VW01 Wall Plate VGA CAT5 Extender

• Used in pairs via one CAT5 UTP cable to send VGA up to 135 meters.
• VGA connector to shielding RJ45 female.
• Wall mountable type for a neat and cleaner installation.
• Wall plate outer dimension: 11 5 x 71 mm
• Passive no power need, not support VGA DDC protocol.
• Up to 135 meters via 4pairs CAT5 cable instead of VGA cable.
• Supports up to 1280x1024.
• Work with desktop PCs, laptops, LCD projectors, plasma displays.
• Perfect for classrooms, lecture halls, tradeshows, video information displays...etc.

CW02A Wall Plate Video & Stereo Audio CAT5 Extender

CW02AP Wall Plate Video & Stereo Audio CAT5 Extender

YW02 Wall Plate Component Video CAT5 Extender

YW02D Wall Plate Component Video & Digital Audio CAT5 Extender

VW02 Wall Plate VGA CAT5 Extender
