SP001 Coaxial Video Surge Protector BNC Connector |
|
•BNC male to BNC female, Hi Frequency for both CCTV and CATV use. |
|
SP001P-AC AC Power Surge Protector Terminal Connector |
•Terminal connector to terminal connector.
•Under 1ns - 400V
•Application for protect AC100-120V, AC220-240V power |
 |
|
|
•2 pin terminal for power input to 2 pin terminal for power output
•Max power input AC40V(MAX),DC56V(MAX)
|
|
SP001VP Video & Power Surge Protector |
•Two stage protection: 130V, AC/DC12V
•3 pin terminal + BNC male to 2 pin terminal + BNC female
•Max power input AC40V(MAX), DC56V(MAX) |
 |
|
SP001VPD Video, Power, Data Surge Protector |
• Identical same as SP001VP, but with Data protection.
• 5 pin terminal + BNC male to 4 pin terminal + BNC female
• Max power input AC40V(MAX), DC56V(MAX)
|
 |
|
SP002 Coaxial Surge Protector F Connector |
F male to F female, Hi Frequency for both CCTV and CATV use. |
|
|
SP002VP Video, Power Surge Protector |
• Identical same as SP001VP, but F connector instead of BNC. |
|
|
SP002VPD Video, Power, Data Surge Protector |
• Identical same as SP001VPD, but F connector instead of BNC..
|
|
|
SP003 UTP Video Surge Protector RJ45 Connector |
• RJ45 Jack to RJ45 Jack
• Two pairs protection ( Pair 2 & Pair 4)
• Protects UTP twisted pair transmission products |
|
SP004 UTP Data Surge protector Terminal Connector |
• Terminal connector to terminal connector.
• Perfect for video or data signal protection.
|
|
SP005 SP005 Video and Data Surge Protector
|
• BNC female + terminal to BNC female + terminal
• Perfect for speed dome camera & control signal. |
|
SP006 Network Surge Protector |
• RJ45 jack to RJ45 jack
• Four pairs protection
• Perfect for network, PC modem, server...etc
• Protects UTP twisted pair products ( TTA111AV multifunction transceiver) or
any computer equipment with utilizing networking cable.
|

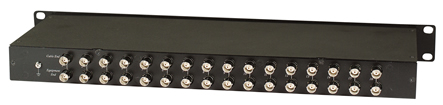

SP016C Video Surge Protection For DVR in 1U Rack Mounting Panel |
• For coaxial cable use, 16 BNC female to BNC female.
• Provide protection for DVR, multiplexers or any equipment with multiple video inputs. |
 |

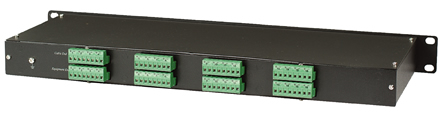

SP016T Video Surge Protection For DVR in 1U Rack Mounting Panel |
• For twisted pair cable use, 16 terminal connector to 16 terminal connector.
|
|
Item |
SP001 |
SP002 |
SP003 |
SP004 |
SP005 |
SP006 |
SP001P-AC |
SP001P |
SP001VP
SP002VP |
SP001VPD
SP002VPD |
SP016C |
SP016T |
Surge protection attack time |
1ns |
Maximum surge current |
4KV |
Surge life |
300 surges of 100Amps |
Normal Resistance Across Cable |
10,000 M O |
Surge Resistance |
Approx. 0 O |
BAND PASS |
0~10 MHz |
0~2GHz |
0~10MHz |
0~1GHz |
0~10Mhz |
0~1GHz |
Power Passing Capability |
DC90V, AC90Vp-p, 65 Vrms at 10Amps |
Insertion Loss |
Less than 0.2dB |
Return Loss (75 O) |
16dB |
Connectors |
BNC |
F |
RJ45 |
Terminal |
Terminal & BNC |
RJ45 |
Terminal |
Terminal |
Terminal & BNC/F |
BNC |
Terminal |
Dimensions (mm) |
78x25x25 |
78x25x25 |
85x25x25 |
65x25x25 |
87x67x27 |
87x67x27 |
65x25x25 |
65x25x25 |
87x67x27 |
97x67x27 |
482x170x44 |
Weight (g) |
80 |
80 |
90 |
65 |
136 |
134 |
65 |
65 |
136 |
136 |
1200 |
1200 |
|

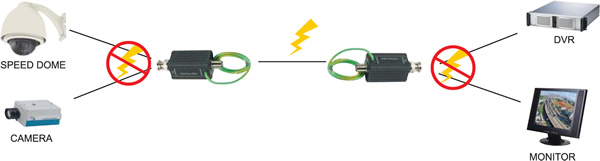

Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding
The system appears as an open circuit to transient high voltage surges and prevents these from passing into domestic electronic equipment such as TVs, VCRs & CCTV converters. |
Unshielded Installations
