| TRA111VH 19" Rack Card 1 Channel Active Receiver |
 |
Features:
- Built in a highly balanced mode of video transmission for extra interference immunity.
- HF,MF,LF compensation for color gain and adjustable brightness & contract for cleaner, sharper looking picture.
- Built in Input Impedance, Balance, Liner Gain adjustment.
- Built in Surge Protection.
- Perfect to maintain good quality picture for long-range transmission with DVR.
- Use with TRN012, to insert up to 14 pieces TRA111VH for 14 channel active video receive.
|
| Specifications: |
|
| ITEM |
TRA111VH |
| Video input |
0.12-2 Vpp |
| Input impedance |
45 - 175 Ohms |
| Video output |
1 Vpp, 75 Ohms |
| Freq. response |
50 Hz - 5 MHz(-3 dB) |
| Disturbance reduction |
> 70 dB, 50Hz |
| Gain adjustment |
+6 dB.+60 dB at 5 MHz |
| Noise |
-50 dB at+40 dB gain adj.
-47 dB at+60 dB gain adj. |
| Power supply |
DC12V, 150mA (max) |
| Input protection |
surge arrester |
| Indicators |
LED (Red)-power on |
| Material |
Metal |
| Dimensions W x H x D mm |
125x125x27.5 |
|

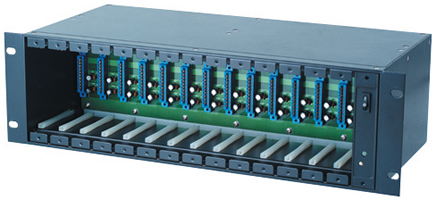

| TRN012 3U 19" Rack Mounting Cabinet built in one Power Supplier |
Features:
- Standard 19" 3U rack mounting cabinet built in one-piece power supply.
- 15 insert lots including single 1 Amp power supply.
- No cooling fans required.
- It can be added one more power supply (TRN012P) as spare power, Auto Redundant.
- Ground connecting for protection monitoring equipment.
- Ideal for large security monitoring stations or video (audio) distributions hubs.
|
 |
Specifications:
| Rack card input |
13 pieces |
| Power supply |
DC12V/1A x 1 |
| Dimension |
482 x 205 x 133 ( 3U) |
| Weight |
6,500 |
| Material |
Metal Black |
|
|
TRN012P Power Supply DC12V/1A |
 |
Application:
TRP414V, TRA111AV both are 19" rack card transceivers that receiving of real-time color or monochrome video signal, over industry CAT 5 twisted pair networking cable. These two models could install in TRN012 19" standard rack mounting cabinet, up to twelve pieces. It can install together with other racks for other equipments, such as switchers, multiplexers, DVR, video conferencing equipment, etc. It is perfect for larger CCTV installations and ideal for security monitoring stations . |
| TRP111AV 19" Rack Card 1 Channel Passive AV Receiver |
 |
Features:
- One Channel Video and stereo audio passive receiver.
- Built in a highly balanced mode of video transmission for extra interference immunity, Use with TRN012, to insert up to 15 pieces TRP111AV for 15 channel passive AV transmission.
|
| TRP414VH 19" Rack Card 4 Channel Passive Receiver |
 |
Features:
- 1 RJ45 input and 4 video BNC outputs.
- Built in a highly balanced mode of video transmission for extra interference immunity, perfect work with DVR to immunity DVR interference.
- Use with TRN012, to insert up to 15 pieces TRP414VH for 60 channel passive video transmission.
|
Specifications:
| ITEM |
TRP414VH |
| VIDEO INPUT (BNC Connector) |
4, 1V p-p, 75 Ohms |
| AUDIO INPUT |
X |
| RJ-45 INPUT |
X |
| RJ-45 OUTPUT |
1 |
| TRANSMISSION DISTANCE |
600M (B/W), 400M (COLOR) |
| CABLE FOR RJ-45 |
Twisted Pair CAT5 |
| POWER |
X |
| DIMENSIONS W x H x D mm |
125x125x27.5 |
|
Unshielded Installations
