Twisted Pair Transmission - Panel



TPP016  16 Port Passive Transceiver Hub In 1U Rack Mounting Panel

 Features:

  • Built in 16 port passive transceivers in 1U 19" rack mounting panel.
  • As a rack mounting passive transmitter hub, use with TTA111AVR/ TTA111VR receiver at distance up to 1000 meters.
  • Passive, no power required.
  • Built in a highly balanced mode of video transmission for extra interference immunity.
    TPP016



TTPA008  8 Port Active Receiver Hub In 1U Rack Mounting Panel

Features:

  • Built in 8 port TTA111VR active receivers in 1U 19" rack mounting panel.
  • Built in a highly balanced mode of video transmission for extra interference immunity.

    TPA008



TPA016 16 Port Active Transceiver Hub In 1U Rack Mounting Panel

 Features:

  • Built in 16 port TTA111VR active receivers in 1U 19" rack mounting panel.
  • Built in a highly balanced mode of video transmission for extra interference immunity.
    TPA016

TPA016H 16 Port Active Receiver Hub In 1U Rack Mounting Panel

 Features:

  • Built in 16 port TTA111VR active receivers in 1U 19" rack mounting panel.
  • Built in surge protectors.

TPA016H

Specifications:

ITEM

TPP016 TPA008 TPA016 TPA016H
Video Input port 16 port (Terminal Block) 8 port (Terminal Block) 16 port (Terminal Block) 16 port (Terminal Block)
Video Output Port 16 Port, 1Vp-p, 75ohms (BNC Connector) 8 Port, 1Vp-p, 75ohms (BNC Connector) 16 Port, 1Vp-p, 75ohms (BNC Connector) 16 Port, 1Vp-p, 75ohms (BNC Connector)
Power Input DC 12V
Power Consumption 400mA
Recommend cable CAT 5 Cable 4 Pairs (24 AWG)
Power Adapter Included
Dimension (mm) 482x170x44 (1U)
Weight (g) 2200 2200 2720 2720
Material Metal Black

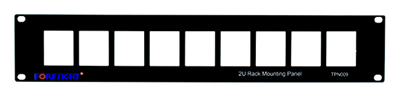

TPN009 2U Rack Mounting Panel

  • Standard 19-inch (482mm) wide, 3.5-inch (90mm) 2U high.
  • Supports up to 9 pieces TTA111VR or CD102.
  • This heavy-gauge panel is designed to withstand the mechanical load of multiple cables.
    TPN009
    Application:
    TPN009 Application
    Specifications:
Dimension (mm) 482 x 88 x 28 mm
Weight (g) 460
Material Metal Black

Application:

TPA009, TTP016,TPP016 are multi video transceivers to be install onto one compact 19" wide 1U panel, Panels can reside in the same rack as other equipment, such as switchers, multiplexers, DVR, video conferencing equipment, etc. They are perfect for larger CCTV installations and ideal for security monitoring stations or video distribution hubs.

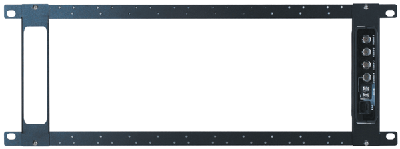

TPN012 19" Universal Rack Mounting Panel

Features:

  • Standard 19-inch (482mm) wide.
  • Supports up to 12 pieces of TTP111AV, TTP414V,TTP414VD,TTP444V,TTP414VH, TTA111AV,TTA111VH,CD104,CA404,CA101A,CA101VH.etc.

TPN012

TPN012: 3U 19" rack mounting panel with 4 pieces holder
TPN012C: 4 pieces holder in one bag for TPN012 (to fit TTP414VH,TTA111VH,CD104,CA404,CA101VH,CA101A)
TPN012T: 4 pieces holder in one bag for TPN012. (to fit TTP414V, TTP444V, TTA111AVR)
